Whatever your requirements, J-Flex can help you with our superb range of fabricated rubber sleeves which includes:
Any of the above fabricated components can be made to your specific requirements quick and efficiently.

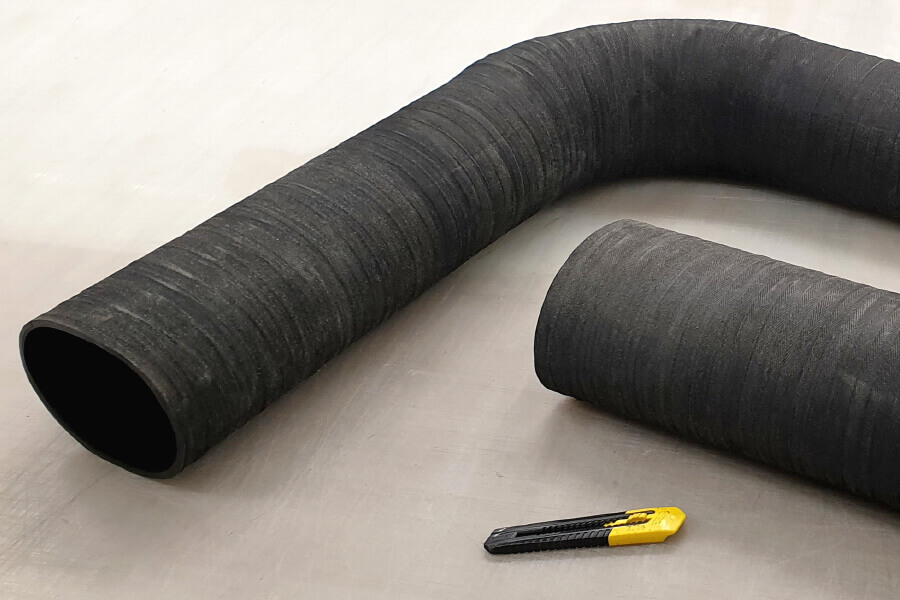

These consist of a seamless rubber tube produced with a smooth seamless inner surface and bandage-finished outer cover.
A full range of Mandrel-Built Rubber Sleeves ranging from 1¼” up to 24” diameter and 1/8” to 1” wall thickness are available from stock in a variety of materials including Para and White Food Quality Natural and Neoprene. Other rubber compounds are available on request.

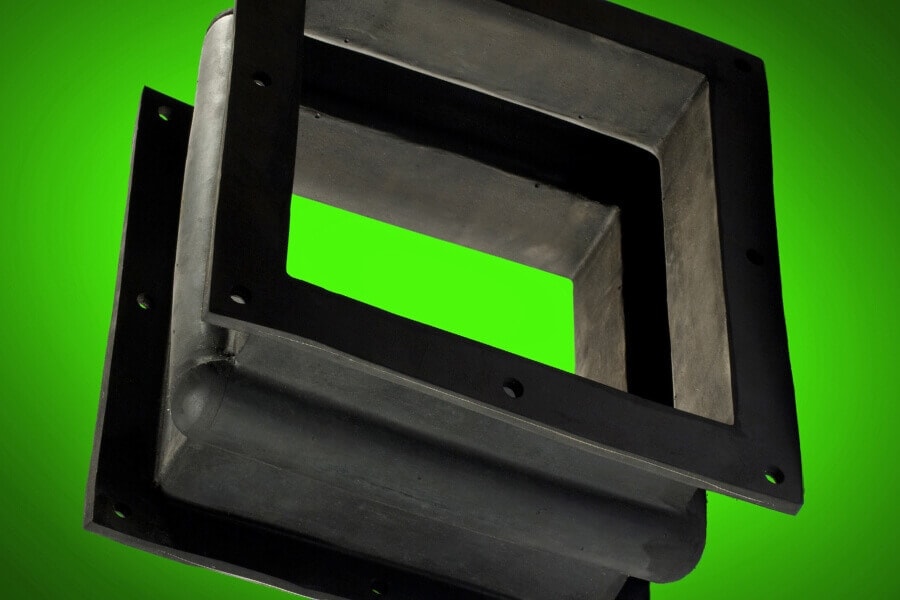

Hand-Fabricated Sleeves are produced from rubber sheet material and are manufactured with either a butt or overlap joint. Each sleeve can be produced to any given dimensions in the following materials which are White Food Quality FDA Approved Rubbers. Flanges can also be incorporated into the design.
Supplied in either FDA approved Food Quality Natural or Neoprene Rubbers, along with red Natural rubber. Sizes start from 4” up to 10” diameter at 2” intervals. Other materials available to order include EPDM and Silicone.
We also have tooling to produce a range of single convoluted Silicone Rubber Bellows in sizes 3”, 4”, 6”, 8” and 10” – see the available JF 1000 datasheet download below.
As with fabricated rubber sleeves, any shape and design can be achieved with high frequency welded polyurethane in clear and opaque PU.
Any design of flexible connector including sleeves, double-flanged, conical and offset connectors are available in a variety of materials including Polyurethane coated nylon, PVC polyester, Needlefelt, Rubber proofed nylons, cottons and various glasscloths.
